Portable 7 Inch Uvss Under Vehicle Surveillance System High Definition

Product Categories

Beijing Heweiyongtai Sci & Tech Co., Ltd.

Contact Now

Name: Portable 7 Inch Uvss Under Vehicle Surveillance System High Definition
Brand: HEWEI
Price: 700 USD

Brand Name : HEWEI

Model Number : HW-PUVD03

Certification : YES

Place of Origin : China

MOQ : 1 unit

Price : USD700 ~ 1200

Payment Terms : T/T

Supply Ability : 100 units per month

Delivery Time : 15 working days

Packaging Details : carton package

Name : Portable Under Vehicle Camera Surveillance System 7-inch high-definition

Imaging sensor : 1/2.9" CMOS Sensor

Minimum illumination : 0.01Lux@F1.2；Black and white 0Lux (INFRARED light on）

Signal/scan system : PAL；Progressive scan

PAL；Progressive scan : Automatic/Manual (1/5-1/50000 second)

Day and night mode : ICR filter

Contact Now

Portable Under Vehicle Camera Surveillance System 7-inch high-definition

Model:HW-PUVD03

Function and features

Using 7-inch high-definition and bright 1080P display screen, image display is clear;

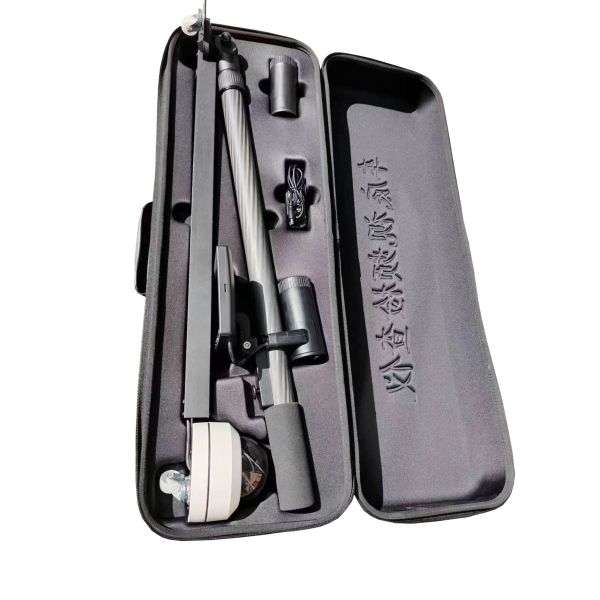

Using high quality high-definition wide angle camera,with wider field of vision.The 7-inch high-definition display makes the image more clearer. The main body adopts carbon fiber tube, which making it more lighter and portable. Convenient folding structure, movable telescopic rod, universal wheel chassis so that the operator can adjust the Angle flexibly when using.

Portable 7 Inch Uvss Under Vehicle Surveillance System High Definition

Features:

1. Video collection function: The front-end video collection device can collect clear target images.

2. Angle adjustment function: The shooting direction and Angle of the front-end video acquisition device can be flexibly adjusted.

3. Real-time display function: The device can display the video inspection results of front-end components in real time.

Parameters:

Display Screen	LCD Screen	7.0 inch color
	Display Resolution	1920*1080
	Display Brightness	800 cd/㎡
	View angle	140/120 Degree (horizontal/vertical)
Camera	Lens	1/2.8" CMOS；
	Pixel	10 million pixels 1080P@ 25,30 frame
	Minimum Illumination	Black and white 0.02Lux(OLUX)
	Infrared fill light lamp	3 high-power automatic light filling lamp (non-traditional infrared light filling lamp)
	Signal/scan system	PAL/NTSC；progressive scanning
	Electronic shutter	Auto/Manual(1/5-1/50000 second)
	Day-night mode	ICR filter
	Fixed-focus	2.8mm
	Horizontal View Angle	112
	Vertical flat perspective	84
	IR Distance	20m
	Horizontal speed	Horizontal 360 ° rotation, speed 0-30°/S; Angle reaches 400°
	Vertical Speed	Speed 0-20°/S
	Vertical range	0°-120°；Angle of view to 165°
	Level of protection	IP68
	Maximum Image Size	3200*2560
	Power Supply	DC 12V1A, 9W
	Operating temperature and humidity	-35℃+65℃,≤90%RH(No condensation)
Display	Video recording resolution	1080P
	Memory	32G the maximum support 256G
	Video	Automatic video
	Playback	support
	Time to record a single video file	1, 3, and 5 minutes are optional
System	Battery	2600mah*2
System	working voltage	12v
Appearance	Folded dimension	1180x192x180mm
	Expanded dimension	2235x192x180mm
	Display Size	180x120x20mm
	Net weight	2kg
	Gross weight	≦4kg

Portable 7 Inch Uvss Under Vehicle Surveillance System High Definition

Product Tags:

Portable 7 Inch Uvss Under Vehicle Surveillance System High Definition Images
